Loc-Down® System

Measurements Available:

Loc-Down® System

The Mitee-Bite Loc-Down® System was designed to be a programmer’s and operator’s dream for quickly and easily securing small to large aerospace parts. Its compact design allows for tighter pattern on grid plates compared to other options in the marketplace saving material cost on expensive aerospace alloys.

The Loc-Down® generates high holding force and provides low profile “out of the way” clamping allowing programmers to be very creative. Permits aggressive machining without tooling interference or apply forces that would influence part, intended to streamline production for the Aerospace Industry.

Ideal for grid plates, tombstones and custom applications
100% Heat Treated Stainless Steel

	Description	Part No.		Thread Size	Bushing Part No.	Cutter Part No.	Loc-Down® Quick Change Kit* Part No.
INCH	Loc-Down® Clamp	11538	CAD	3/8-16	11524	11531
	Loc-Down® Clamp	11500	CAD	1/2-13	11520	11530	11550
	Loc-Down® Clamp	11558	CAD	5/8-11	11528	11530
METRIC	Loc-Down® Clamp	11610	CAD	M10-1.5	11524	11531
	Loc-Down® Clamp	11612	CAD	M12-1.75	11520	11530	11650
	Loc-Down® Clamp	11616	CAD	M16-2.0	11528	11530

Description	Part No.
Loc-Down® Carbide Cutter 1/2″	11530	CAD
Loc-Down® Carbide Cutter 3/8″	11531	CAD
Loc-Down® Insertion Tool	11535	CAD
Heavy Wall Loc-Down® Bushing – 3/8 (M10)	11524	CAD
Heavy Wall Loc-Down® Bushing – 1/2-13 (M12)	11520	CAD
Heavy Wall Loc-Down® Bushing – 5/8-11 (M16)	11528	CAD

Never use an impact style driver when tightening or loosening.
Hand tightening for majority of applications is sufficient – Maximum torque 15 Ft-lbs. (20 N.m)
*Kit includes 4 Loc-Downs, 4 custom bushings, insertion tool,
4 liners, 1 diamond and tapered pin with mounting screws.

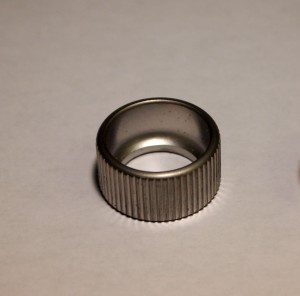

11520 NEW Heavy Wall
Lock-Down Bushing

We have combined our Loc-Down®, custom Bushings
and Locating Pins and Liners in a convenient kit (that
delivers a low-cost high precision quick change pallet
system with a repeatability of .0004″/0.01mm or better!
