The MITEE-BITE Advant-Edge Clamp provides additional clamping force and improved table grip.
- Tilted clamping element creates a positive downward force and 4,000 lbs. holding force
- Hardened clamping element has both a smooth surface for machined workpieces and a serrated clamping surface for rougher work
- Improved locking mechanism secures clamp to machine table
- Packaged individually (52224) or as kit of two (52424)

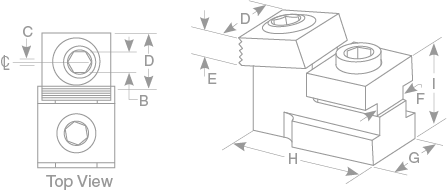

| Part No. | Cam Screw |
T-Slot Size |
B | C | D | E | F | G | H | I | Max Torque/Holding force Ft.Lbs/Lbs. |
Replacement Square Washer |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 52224 | CAD | #50372 | 5/8 | 5/16 | .080 | 1.00 | .375 | .610 | 1.12 | 1.89 | 1.1 | 65/4000 | 51016 |
| 52424 (kit) | |||||||||||||
| Metric | (N.m./N.) | ||||||||||||
| Dimensions | 16 | 8 | 2 | 25.4 | 9.5 | 16 | 28.5 | 48 | 28 | 88.00/17800 |
Torque mounting bolt to 70 ft/lbs (150 N.m.)
